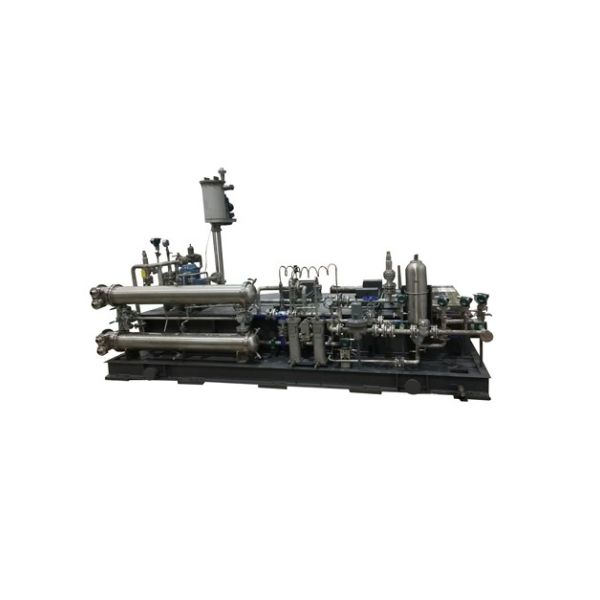

3X3 XYZ Type Circulating Lubrication System Lubrication Oil Station 7.5KW

3X3 XYZ Type Lubrication Oil Station XYZ-300/0.4 Motor 7.5 KW Tank Area 4.2m³ 65mm

Technical Parameter

Reference Dimension

Structural features of thin oil station

1. One oil pump is used and the other is standby to ensure the reliability of continuous oil supply to lubrication points.

2. Before the filter is put into the cooler, the filtering capacity can be improved, and it can also adapt to lubricating media with higher viscosity.

3. Double cylinder filter is used, when the original filter element is taken out for cleaning or replacement, it can switch to the spare filter element without stopping the machine.

4. Adopt tube type oil cooler, good cooling effect, small resistance, easy cleaning and maintenance.

5. Equipped with instrument panel and electric control box, it is convenient to observe the operating parameters, and can realize automatic control and accident alarm.

The importance of thin oil station

The thin oil station is an important guarantee for the normal operation of many operating equipment. Once a serious leakage occurs during use, it will cause huge losses to the actuator, and even cause major shutdowns and downtime accidents. Even a slight leakage will cause serious damage to the site environment and Security production has adverse effects. The traditional method requires disassembly and maintenance, which is labor-intensive and will cause long-term shutdown. What is more serious is that it will seriously affect the continuous production of the enterprise. At present, polymer composite materials can be used for on-site rapid processing. It shows the advantages of quickness and durability when recovering such problems, and can avoid dismantling the site without stopping or less parking to prevent leakage.

3X3 XYZ Type Lubrication Oil Station

circulating lubrication system 7.5KW

XYZ Type circulating lubrication system

3X3 XYZ Type Circulating Lubrication System Lubrication Oil Station 7.5KW Images
